March 2011

Packaged Biomass Boiler

Plantroom

Inverness Primary School

Our Services were required to manufacture, supply, deliver & re-assemble a Packaged Biomass Plantroom on-site at the Inverness Primary School in Scotland.

The plantroom dimensions are 14 x 4 x 4.1 meter high which also includes the pellet fuel store.

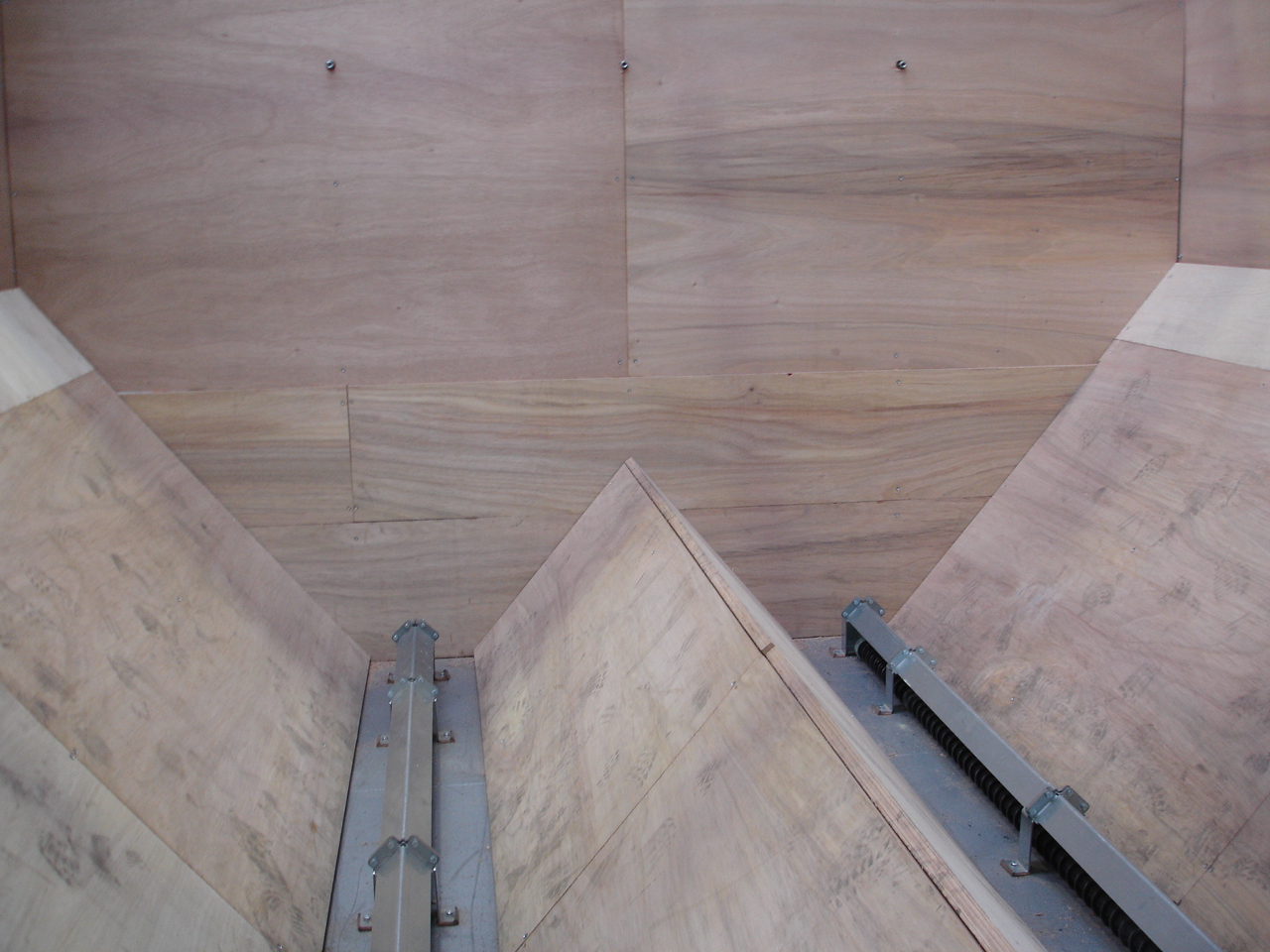

This is a Photo inside the pellet store.

Rain water guttering & down pipes fitted to the plantroom on site.

300kW Biomass Boiler accumulators, fuel feed system, augers and transport tubes.

Internal Plant and pipe services included in the Plantroom were:

• buffer tank and control software
• Boiler & fuel feed wiring
• Individual boiler heat meters
• Flue system
• 3,000litre buffer vessel c/w thermal insulation jacket
• Pumps, Pressurisation Unit, 500litre expansion vessel & commissioning
•

  Factory applied pipe services thermal insulation
• Electrical services, lighting/emergency & small power requirements

• Preliminaries, design development, delivery to site & site assembly



March 2011

Prefabricated Plantroom for

RAF Northwood

The Prefabricated Plantroom made for RAF Nothwood measures 6.0 x 3.5 x 3.0 meters high.

In which contains 2no.off Gas fired boilers models: IMAX XTRA 200's with a total output of 414kW. Also a Pressurisation Unit model: EPT from Flowmech. All internal pipework services and thermal insulation installed. Relevant labelling & Identifications.The Plantroom was constructed at our works in High Wycombe then lifted onto a lorry for transportation to site where it is then lifted into position for the final connections to be made. This Method is an excellent way of keeping our clients happy as it saves time, site and trade co-ordination, engineering resources, purchasing and delivery logistics.
